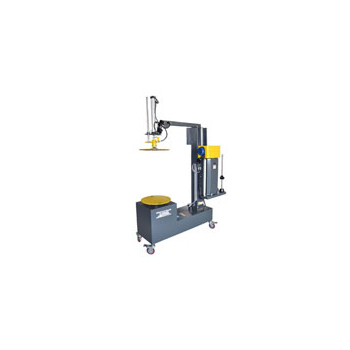

Our organization is counted among the most trusted business entities, providing optimum quality Fully Auto Pallet Stretch Wrapping Machine that is reckoned among the users for its minimizing man power, god adaptability and minimizes power consumption. Inspected on varied quality parameters, the offered stretch wrapping machine is manufactured while making use of excellent grade of components along with most updated machine and contemporary techniques. Moreover to this, Fully Auto Pallet Stretch Wrapping Machine is available to our clients in numerous specifications.
Specification
Capacity (Pallets per hour) | 20 Pallets/hr |
Maximum size of pallet | 1250x1100x2450 LBH in mm |
Film width | 500 mm |
Film Roll OD | 200 mm |
Film thickness (micron) | 28-35 micron |
Turntable speed adjustable (rpm) | 0-15 rpm |
Turntable Diameter | 2000 mm |
Turntable Height | 80 mm |
Power consumption | 1.75KW |
Electric Connection (Voltage, Phase) | 3 phase, 380 V/ 50 Hz |
Control Voltage | 230V/50Hz machine can run with single phase |
Machine Length (mm) | 2650 mm |
Machine Width (mm) | 1500 mm |
Machine Height (mm) | 2850 mm |
Performance
Turntable speed | 10rpm |
Loads per hour | 20 pallets/hr depending upon the pick & Place of pallet |
Min. Wrapping Height | 600mm |
Max Wraping Height | 2450mm |
Max Wraping Height | 2450mm |
LOAD CAPABILITIES | |
Max Load Size | 1250*1100*2450 |
Max Load Height | 1200 to 2000mm |
